Wysoka wydajność zaworu przepony tłokowej

Zaprojektowany z najnowocześniejszą technologią i wytrzymałymi materiałami, zawór przepony tłokowej o wysokiej wydajności rozwiązuje najbardziej krytyczne problemy dla inżynierów, operatorów i zespołów konserwacyjnych w różnych branżach.

Wyślij zapytanie

Opis produktu

Qingdao Star Machine's top quality shell and cover of the High Efficiency Piston Diaphragm Valve are made of durable aluminum alloy die casting,good appearance, high strength, and can ensure no leakage phenomenon. Valve the pressure channel design is reasonable, and the open and closed surfaces of the valve are basically located in the air bag, which truly realizes the "submerged type", and the air can be controlled by The gas bag directly enters the spray pipe, which truly meets the requirements of low pressure and large injection volume.

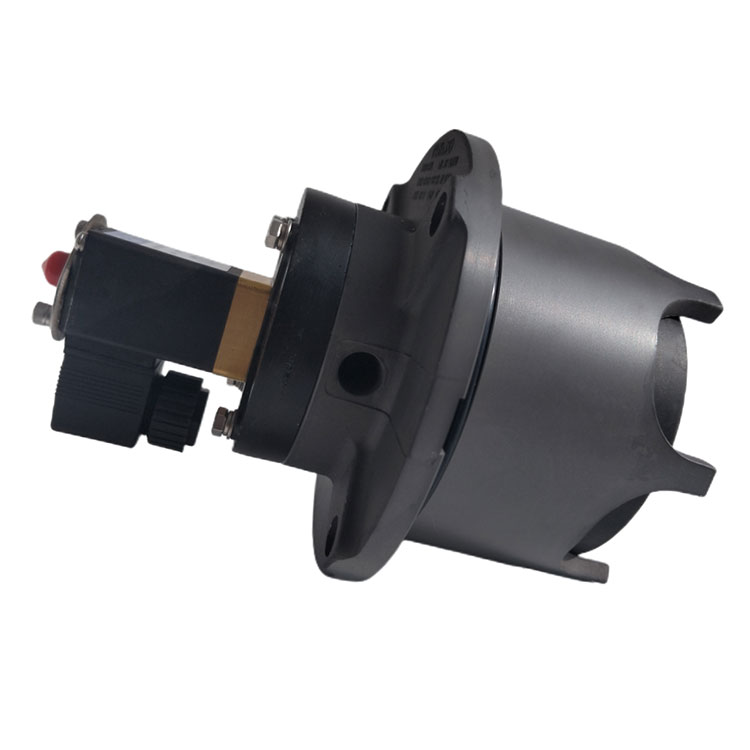

Piston Diaphragm Valve

The compact pulse valve fort he Optipulse fabric filters of different types.

1.Is a result of many years of experiences with in the fabric filter technology area.

2.Is quick acting with high efficiency.

3.Has small dimensions,the figure after the name stands

fir the diameter of the plunger.

4.Is primarily designed to be used in combination with circular pressure tank.

5.Is easy to install and make service to.

6.Has a very robust design,designed for normal use at air pressure up to 600kPa(6bar).Normal max operating temperature(compact pulse valve)50°C.

7.Longer Service Life,More than Twice Service Life in the Same Industry .One Year Free Quality Assurance Service.

Product Parameter (Specification)

Working pressure	0.2-0.6MPa	Diaphragm life	Over one million cycles
relative humidity	＜85%	working medium	Clean air
voltage, current		DC24V，0.8A；AC220V，0.14A；AC110V，0.3A

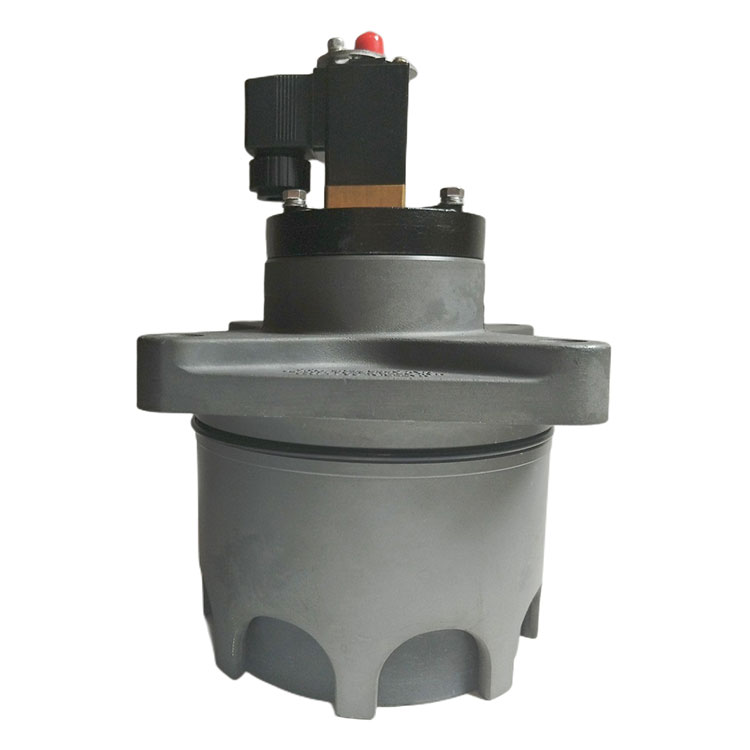

High Efficiency Piston Diaphragm Valve

Product Feature And Application

Piston Diaphragm Valve advantages are mainly reflected in the following aspects:

(1)High efficiency: the Piston Diaphragm Valve opens quickly, so the shock pressure loss is very small, because the opening sequence is easy to control, so the gas volume can be selected according to the different process.

(2)Low loss of compressed air: The Piston Diaphragm Valve reduces the amount of compressed air consumed compared to the diaphragm type.
